Twinax Contacts for MIL-DTL-38999

General Description, Application Data - Size 8

High performance connectors within the D38999 families are the most

commonly used connectors for incorporation of Twinax contacts. These

connectors offer wide versatility in insert arrangements for not only

con centric Twinax contacts, but also coax, triax, PCB, wire wrap,

thermo couples and EMI filter contacts.

Other connectors available with concentric Twinax contacts:

• Wire Integrated Connectors (WICS) for Data Bus Systems.

Consult Amphenol Aerospace, Sidney, NY.

• ARINC 404, ARINC 600 and R27 Series rectangular connectors.

Supplied by Amphenol Canada.

SIZE 8 CONCENTRIC TWINAX CONTACTS

The size 8 concentric Twinax contact was developed for use in MIL-

STD-1553 Airborne multiplex data bus applications which require high

performance interconnect characteristics in multi-pin connectors. Ideal

for this application need is the high performance Tri-Start connector with

its fully scoop-proof feature of recessed pins. The concentric Twinax

contact is crimp terminable to twisted shielded cable. Features include:

• Provides protection from magnetic and electrostatic interfer ence

including nuclear electromagnetic pulse

• Maintains shield integrity through a multi-pin circular

con nector and does not require contact polarization within the insert

• 175°C rated and meets performance levels of MIL-DTL-38999

Series III connectors

• MIL-C-17/176-00002 cable termination

• Gold plated full crimp termination contacts qualified to

M39029/90 & /91

• Integral part of the MIL-STD-1760 interconnection system

• Also available in modified but intermateable versions for termi nation

to a host of cables (See chart on next page)

TYPICAL ELECTRICAL PERFORMANCE

Size 8 Concentric Twinax Contacts

Voltage Rating: 500 Vrms max. @ sea level

Contact Resistance:

Center @ 1 Amp, 55 millivolts max. voltage drop @ 25°C

Intermediate @ 1 Amp, 55 millivolts max. voltage drop @ 25°C

Outer @ 12 Amps, 75 millivolts max. voltage drop @ 25°C

Operating Frequency: 0–20 MHz

Dielectric Withstanding Voltage:

Center to Intermediate: 1000 VAC Rms @ Sea Level

Intermediate to Outer: 500 VAC Rms@ Sea Level

SHORT PROFILE TWINAX CONTACT OPTION

A Short Profile size 8 Twinax is avail able that can be used with a low

profile right angle backshell and can offer increased packaging efficiency.

Consult Amphenol Aerospace for further information.

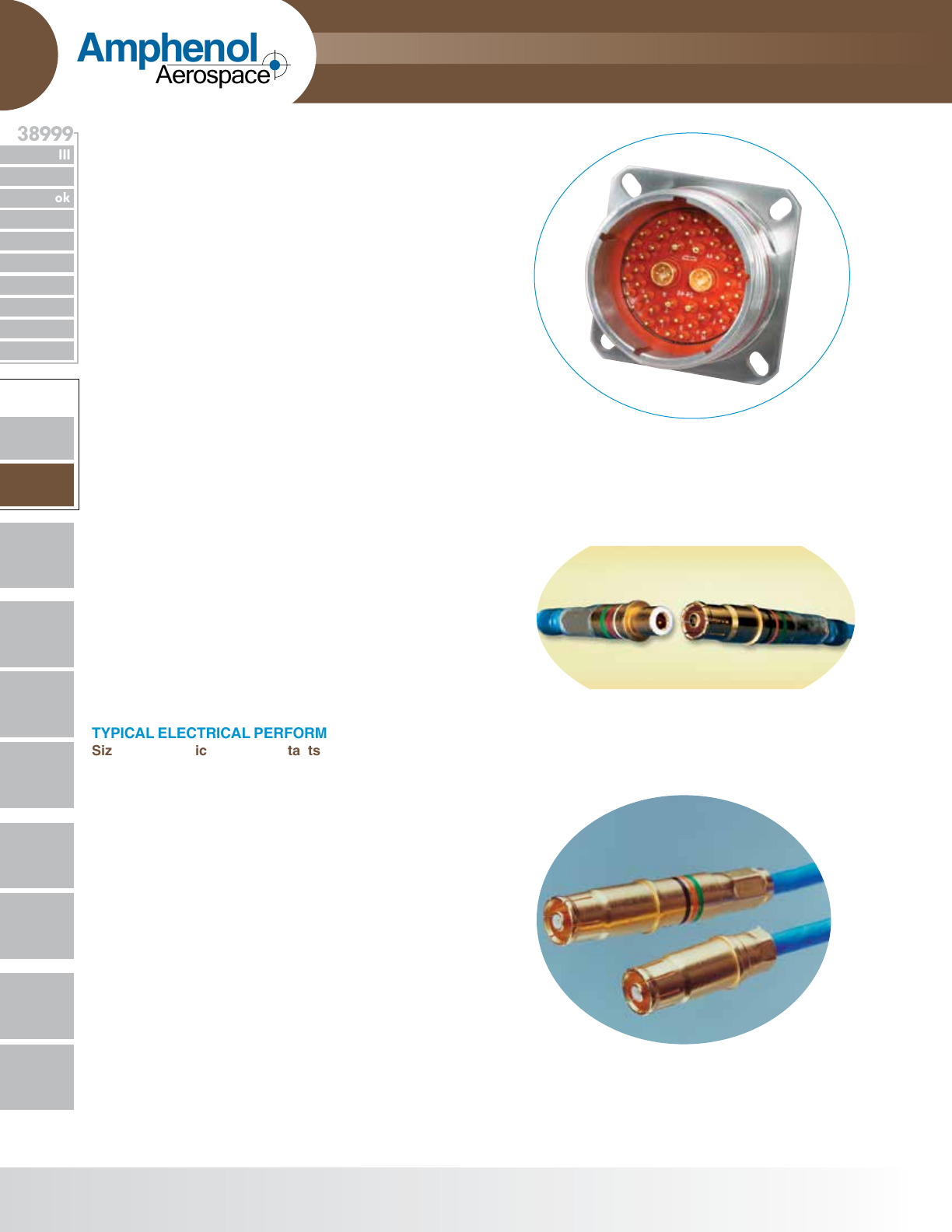

MIL-DTL-38999 Series III Connector with Twinax

Contacts and Standard Contacts

Concentric Twinax Contacts Size 8

Short Profile Twinax vs

Standard Length Twinax Contact

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com 253

Amphenol

Aerospace

Dualok

III

SJT

38999

PCB

Accessories

Aquacon

Herm/Seal

Fiber

Optics

Contacts

Connectors

Cables

HIGH

SPEED

26482

Matrix 2 83723 III

Matrix|Pyle

5015

Crimp Rear

Release

Matrix

26500

Pyle 22992

Class L Back-

Shells

Options

Others

EMI Filter

Transient

Twinax Contacts for MIL-DTL-38999

General Description, Application Data - Size 8, cont.

SIZE 8 CONCENTRIC TWINAX CONTACTS FOR USE IN D38999 CONNECTORS

For use with

Cable

Size 8 Concentric Twinaxial Contact

Part Number

(Termination Instruction Sheet)**

Comments

Connector

SeriesPin Socket

M17/176-00002 21-033190-625

(L-1253-AG)

21-033191-628

(L-1253-AG)

AS39029/113-625 & /114-628 (Amphenol)

Supplied with heat shrink seal

M17/176-00002,

5PTM1T04-2

21-033190-529

(L-1253-A)

21-033191-530

(L-1253-B)

AS39029/90/91 (Amphenol)

Supplied with heat shrink seal

D38999

Series I, III

M17/176-00002 T3-46T08-LD

(PN-430)

T3-47T08-LD

(PN-430)

M39029/90/91 (Pyle)

Supplied with heat shrink seal

M17/176-00002 21-033190-000

(L-1253-A)

21-033191-000

(L-1253-B) Without seals

M17/176-00002 21-033190-001

(L-1253-A)

21-033191-001

(L-1253-B) Supplied with piggyback grommet seal

Raychem 10612, 5M2022-003 21-033190-026

(L-1253-AA)

21-033191-026† Without seals

Raychem 10614, EPD22189B,

7724C8664, 05A0771,

GC875TM24H, T10971

21-033190-022

(L-1253-C)

21-033191-022

(L-1253-D) Without seals

Raychem 10613,

PAN711-6421, 23089/RC

21-033190-027

(L-1253-K)

21-033191-027

(L-1253-L) Supplied with heat shrink seal

Raychem 10613,

PAN711-6421, 23089/RC

21-033190-029

(L-1253-K)

21-033191-029

(L-1253-L) Supplied with piggyback grommet seal

Raychem 10613,

PAN711-6421, 23089/RC

21-033190-030

(L-1253-K)

21-033191-030

(L-1253-L) Without seals

GSC-12-2548-00,

7726D0664, ASNE 08072003-09

21-033190-040

(L-1253-S)

21-033191-040

(L-1253-T) Supplied with heat shrink sleeve

Axon P517417 21-033190-081

(L-1253-W)†

21-033191-081

(L-1253-Y)† Supplied with piggyback grommet seal

Raychem 10612, 5M2022-003 21-033190-261

(L-1253-AA)

21-033191-261† Supplied with piggyback grommet seal

Raychem 10612, 5M2022-003 21-033190-262

(L-1253-AA)

21-033190-262† Supplied with heat shrink seal

Raychem 10614,

7724C8664

T3-46TB08-LD

(PN-494)

T3-47TB08-LD

(PN-494) Without seals

7820D0111 (20 AWG) T3-467C08-LD

(PN-537)

T3-47TC08-LD

(PN-537) Without seals

Gore CXN2268 T3-46TE08-LD

(PN-1001)

T3-47TE08-LD

(PN-1001)

Short profile

Supplied with heat shrink seal (.465)

M17/176-00002 T3-46TD08-LD

(PN-1000)

T3-47TD08-LD

(PN-1000)

Short profile

Supplied with heat shrink seal (.465)

M17/176-00002 21-033910-015†

(PN-1005)

21-033922-015

(PN-1005)

Short profile

Without seals (.263)

M17/176-00002 21-033617-001

(REF PN-100)

21-033922-015

(PN-1005)

Short profile

Supplied with piggyback grommet seal (.465)

Gore CNX2702 T3-46TF08-LD

(PN-1002)

T3-47TF08-LD

(PN-1002)

Short profile

Supplied with heat shrink seal (.465)

M17/176-00002 P-209546-27† Short profile

Without seals (.303)

S280W502-1, Fileca F2709-13-CA,

HS5930, Raychem 10602 0024G0024,

0024A0024

21-033190-070

(L-1253-U)

21-033191-070

(L-1253-V) Without seals

S280W502-1, Fileca F2709-13-CA,

HS5930, Raychem 10602 0024G0024,

0024A0024 Tensolite 24463/9P025x-2(LD)

21-033190-071

(L-1253-U)

21-033191-071

(L-1253-V) Supplied with piggyback grommet seal

S280W502-1, Fileca F2709-13-CA,

HS5930, Raychem 10602 0024G0024,

0024A0024

21-033190-072

(L-1253-U)

21-033191-072

(L-1253-V) Supplied with heat shrink seal

0024A0311, PIC E10244 21-033190-090† 21-033191-090

(L-1253-AD) Without seals

0024A0311, PIC E1024 21-033190-091† 21-033191-091

(L-1253-AD) Supplied with piggyback grommet seal

0024A0311, PIC E1024 21-033190-092† 21-033191-092

(L-1253-AD) Supplied with heat shrink seal

M17/176-00002 21-033190-625

(L-1253-AG)

21-033191-628

(L-1253-AG)

M39029/113-625 & /114-628

Supplied with heat shrink seal

**Termination instructions are packaged with each contact and can be found on-line at: www.amphenol-aerospace.com/serviceinstructions.asp

† Consult Amphenol Aerospace for current release of this contact or instruction sheet if applicable.
