RACM600-L Series AC/DC Converters

RECOM Power’s extremely efficient AC/DC converter features 2MOPP and UL/IEC60601 medical certification

Image of RECOM Power RACM600-L Series AC/DC ConverterRECOM Power's RACM600-L series supports 400 W to 450 W loads with natural convection cooling. Additionally, it is capable of peak power of 600 W, or continuously with forced-air cooling. It includes adjustable outputs providing ±20% and a 5 VSB auxiliary output for ON/OFF functionality. The converter is housed in an open-frame 7.7 in x 4 in x 1.6 in case and is capable of parallel operation with active current sharing. It is certified for both medical UL/IEC60601 and industrial IEC/EN62368. It has an efficiency rating of 93% and Class B EMC compliance without the need for external components. The series is ideal for medical equipment and industrial applications.

Features
  • 400 W to 450 W AC/DC converter
  • 600 W peak power (or continuously with forced air cooling)
  • Adjustable outputs: ±20%
  • 5 VSB auxiliary output
  • ON/OFF functionality
  • Open-frame 7.7 in x 4 in x 1.5 in case
  • 2MOPP
  • 93% efficiency
Applications
  • Medical equipment
  • Industrial applications

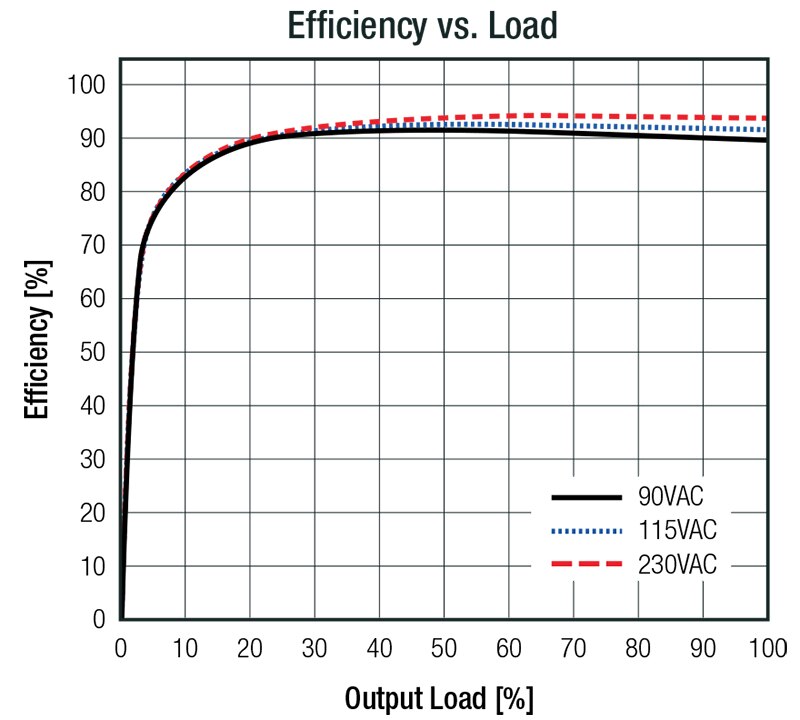

Efficiency Graph - Click to Enlarge
    Image of RECOM Power RACM600-L Series AC/DC Converter - Efficiency Graph
Derating Graph - Click to Enlarge
    RECOM Power RACM600-L Series AC/DC Converter - Derating Graph

RACM600-L Series AC/DC Converters

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
AC/DC CONVERTER 24V 600WRACM600-24SL/OFAC/DC CONVERTER 24V 600W189 - Immediate
553 - Factory Stock
$188.90View Details
Published: 2022-01-27
