TPA3101D2EVM: Stereo 10W @ 8Ω, 10 ~ 26V in

Summary

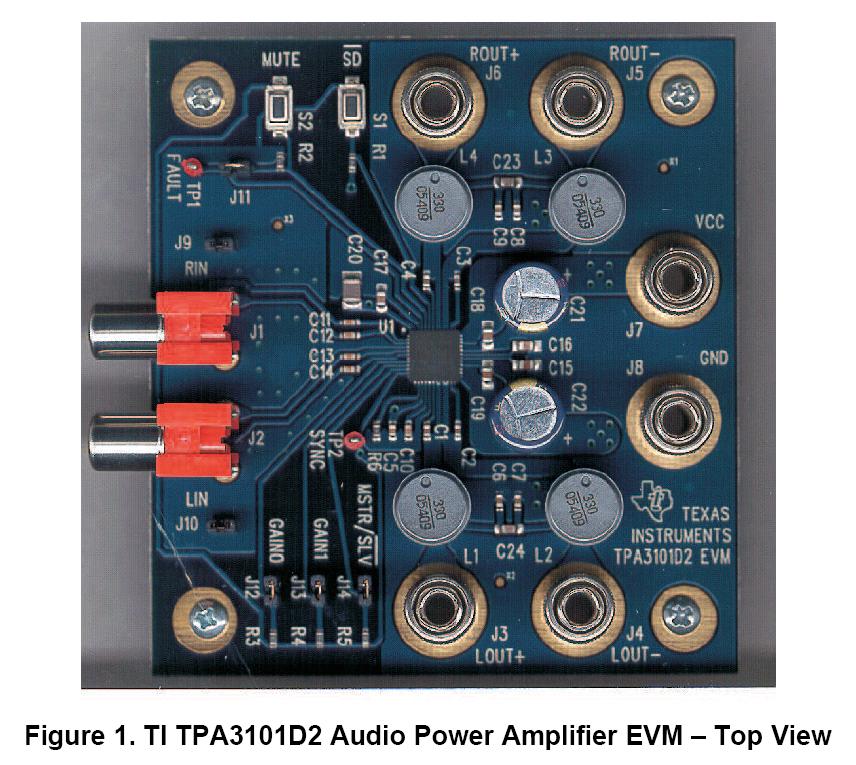

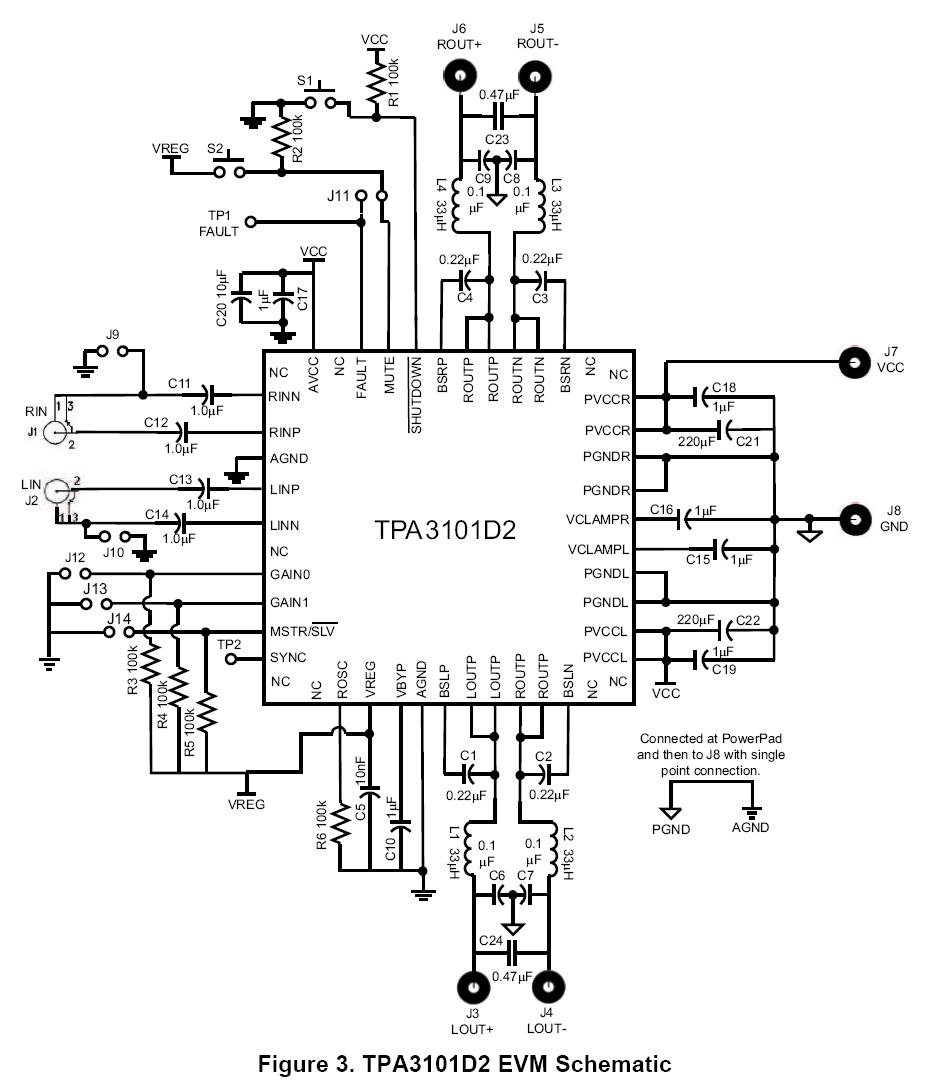

The TPA3101D2 evaluation module consists of a single 10-W, class-D, stereo audio power amplifier complete with a small number of external components mounted on a circuit board that can be used to directly drive a speaker with an external analog audio source as the input.

Specifications

Manufacturer	Texas Instruments
Category	Audio Amplifiers
Eval Board Part Number	296-21139-ND
Eval Board Supplier	Texas Instruments
Eval Board	Board not Stocked
Amplifier Type	Class D
Number of Outputs	Stereo
Output Power (RMS) @ Load	10 W x 2 @ 8 Ω
Voltage In	10 ~ 26 V
THD+N (1kHz) @ Conditions	< 0.1% @ 10 W (8 Ω, 18 V)
Features	Digital Gain Mute Short Circuit Protection Shutdown, Enable, Standby Synchronizable Thermal Protection

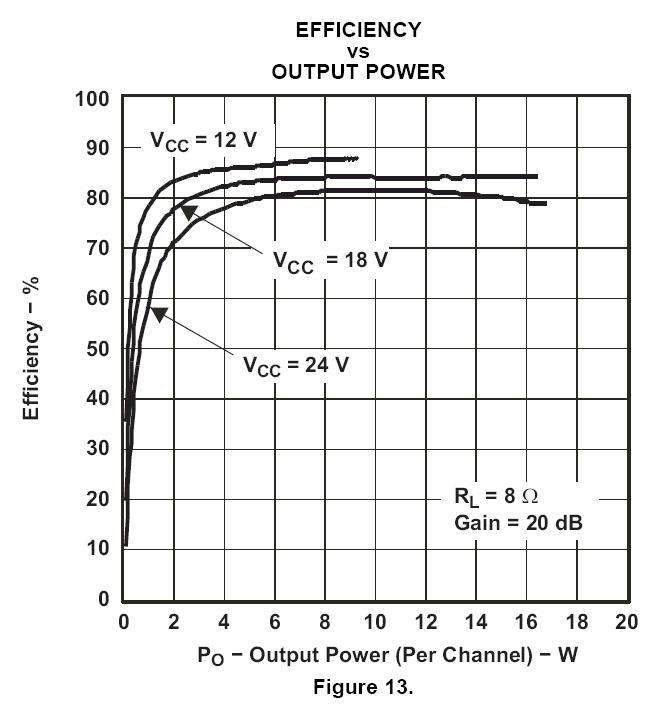

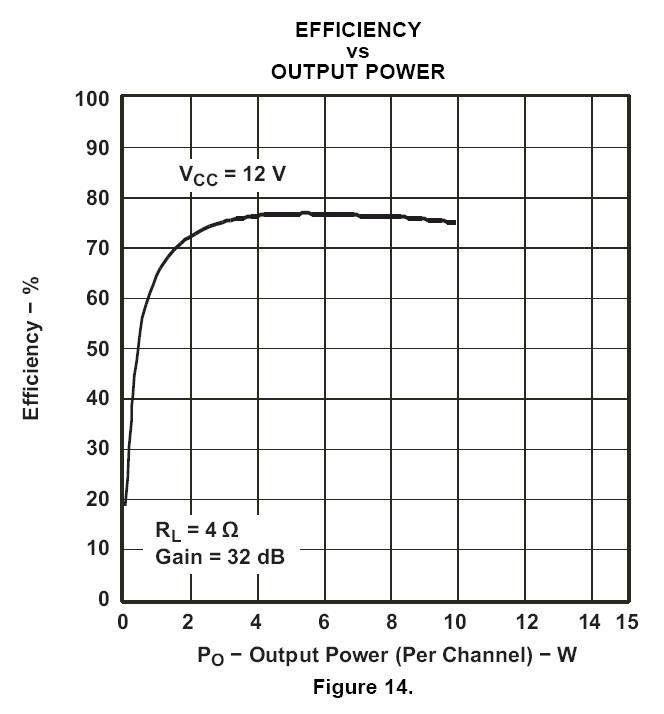

Efficiency @ Conditions	>85%, 3 ~ 9 W @ 8 Ω, 12 V >75%, 3 ~ 10 W @ 4 Ω, 12 V
Standby Current [Typical]	300 µA
Quiescent Current [Typical]	22 mA
Component Count + Extras	34 + 31
Application / Target Market	Audio: Powered Speakers LCD TV / Monitor
Design Author	Texas Instruments
Main I.C. Base Part	TPA3101D2
Quiescent Current [Maximum]	26.5 mA
Standby Current [Maximum]	400 µA
Date Created By Author
Date Added To Library	2011-03
