Product Highlights > MCC DT9816-S Simultaneous USB DAQ Device

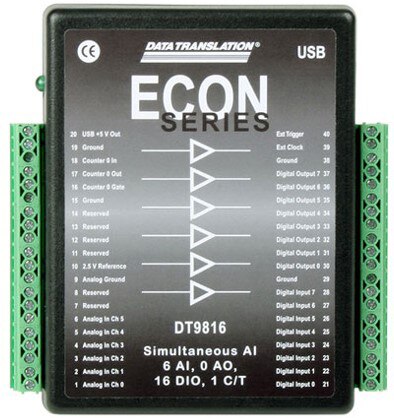

            MCC DT9816-S Simultaneous USB DAQ Device
                    Digilent's DT9816-S is a six-channel high-speed, simultaneous sampling USB-based DAQ device


Digilent's measurement computing DT9816-S is a USB-based DAQ device with six single-ended, simultaneous analog inputs, 16-bit resolution, 7500 kS/s/ch sample rate, 16 digital I/O, and one counter input. This device is USB powered and requires no external power. The DT9816-S offers voltage inputs ranges of ±10 V and ±5 V. The 16 digital I/O lines are configurable as eight inputs and eight outputs. The DIO terminals can detect the state of any TTL-level input.

Software support includes QuickDAQ, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real time or post acquisition on user-configurable displays. Drivers included for applications and programming languages include Visual C++®, Visual C#®, Visual Basic® .NET, DASYLab®, LabVIEW™, and MATLAB®.
