            EPC91107KIT + EPC91110KIT 5 kW GaN AC to 48 V/50 V Reference Solution
                    The EPC EPC91107KIT + EPC91110KIT reference solution is powered by GaN: EPC2304 (200 V, 5 mΩ) in PFC and EPC2305 (150 V, 3 mΩ) in LLC

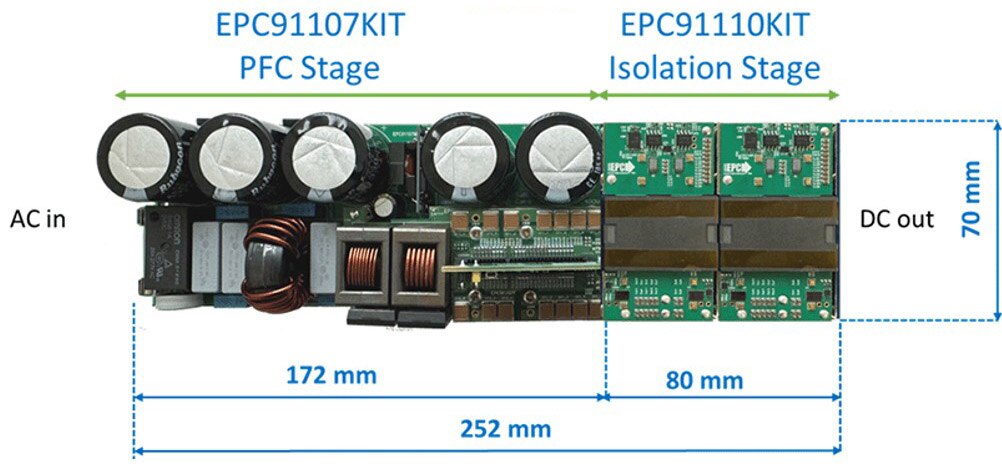

The EPC modular 5 kW reference solution combines a 4-level totem-pole PFC front-end (EPC91107KIT) with a quad ISOP LLC isolation stage (EPC91110KIT) to deliver a compact, high-efficiency AC to 48 V/50 V path for ORv3-class server and AI power systems. The PFC boosts 200 V_AC(RMS) to 277 _VAC(RMS) (V_IN) and 400 V_DC (V_OUT); the isolation stage converts 400 V_DC (V_IN) to 50 V_DC (V_OUT) using four 100 V to 50 V LLC modules (ISOP) to achieve approximately 98% full-load efficiency and balanced thermal distribution.

Features

Complete 5 kW system: 240 V_AC to 48 V/50 V DC (PFC + isolation)
High efficiency: Up to 96.5% at system level; PFC up to 98.5%, LLC peak 98.2%
High power density: 116 W/in³ within ORv3 PSU envelope

Modular and scalable: Architecture supports scaling to multi-rack power levels
Powered by GaN: EPC2304 (200 V, 5 mΩ) in the PFC and EPC2305 (150 V, 3 mΩ) in the LLC

Applications

ORv3 48 V server PSUs and AI server racks
Modular, scalable rack power

High-density AC/DC front ends with isolated 48 V/50 V bus
