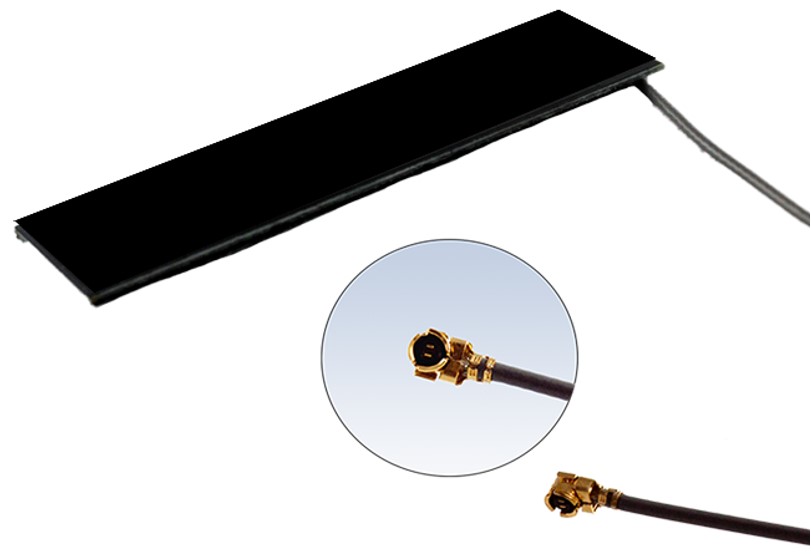

LBF-A045ccXB-* Series NFC Antenna with Ferrite

Joymax Electronics' LBF-A045ccXB-* series antennas are adhesive mount, rigid printed circuit board (PCB) antennas designed for use in 13.56 MHz ISM band supporting NFC (near field communication) and RFID (radio frequency identification) application.

The antennas integrated with ferrite backing provide an internal/embedded antenna solution to easily mount in RF transparent (e.g., plastic) enclosures, enabling environmental sealing and protection from antenna damage.

Connection is made to the radio via a coaxial cable terminated in a U.FL-type/MHF plug (female socket) connector.

Features and Benefits

• Bandwidth 13.56 MHz
• Integrated with ferrite for better sensing performance
• Compact size and low profile
• Adhesive permanently adheres to nonmetallic enclosure/chassis using 3M 467MP adhesive transfer tape
