LTC3870-Slide4

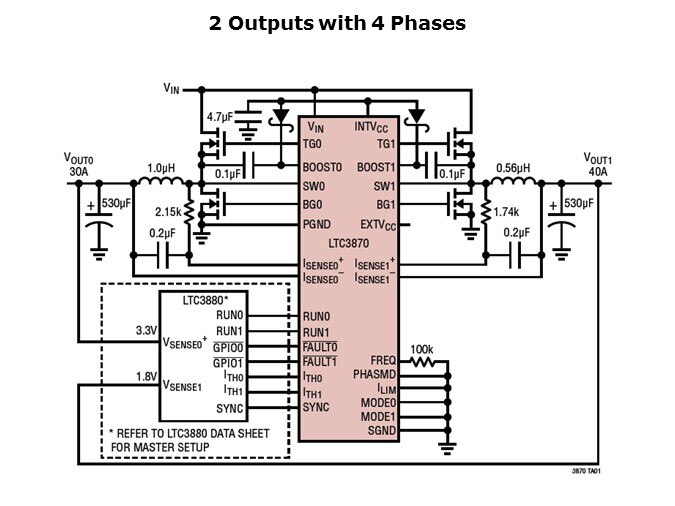

This slide shows a dual output four phase power supply schematic. The LTC3880 Digital Power System Management controller is the master and LTC3870 provides the slave phases. The output voltage can be programmed from 0.5V to 5.4V and one output produces up to 30A and the second output up to 40A.
