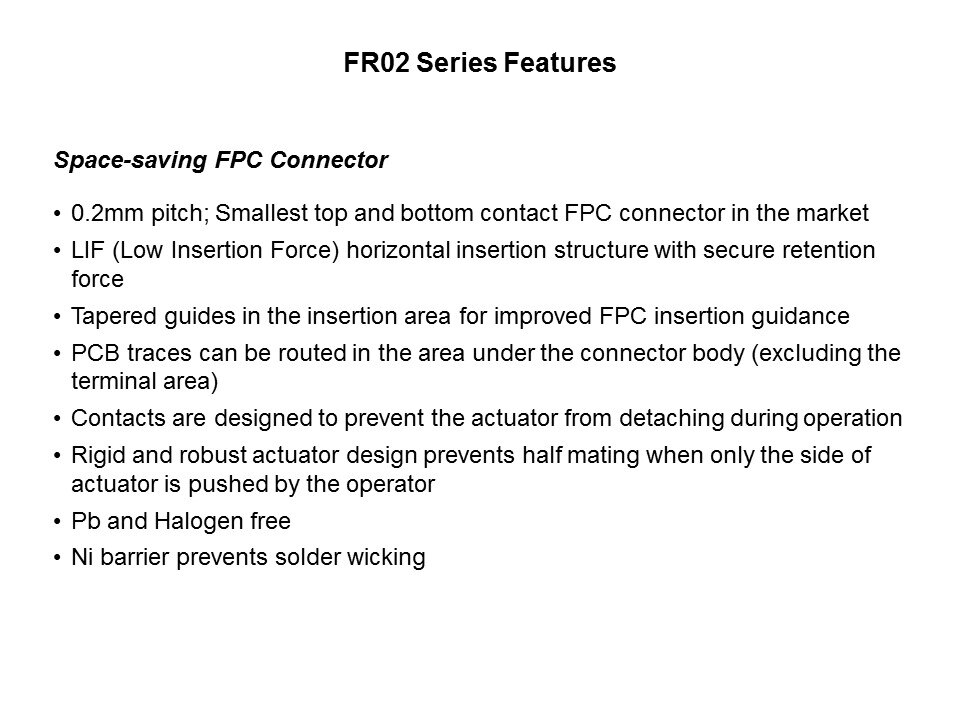

FR02-Slide5

The FR02 series contacts and insulator have tapered guides in the FPC insertion area to improve ease of assembly. The contacts are not exposed on the bottom of the connector, so it is possible to route PCB traces under the connector. The robust and rigid actuator design ensures that the entire actuator moves together when locking or unlocking to ensure there is no half mating.
