FR02-Slide6

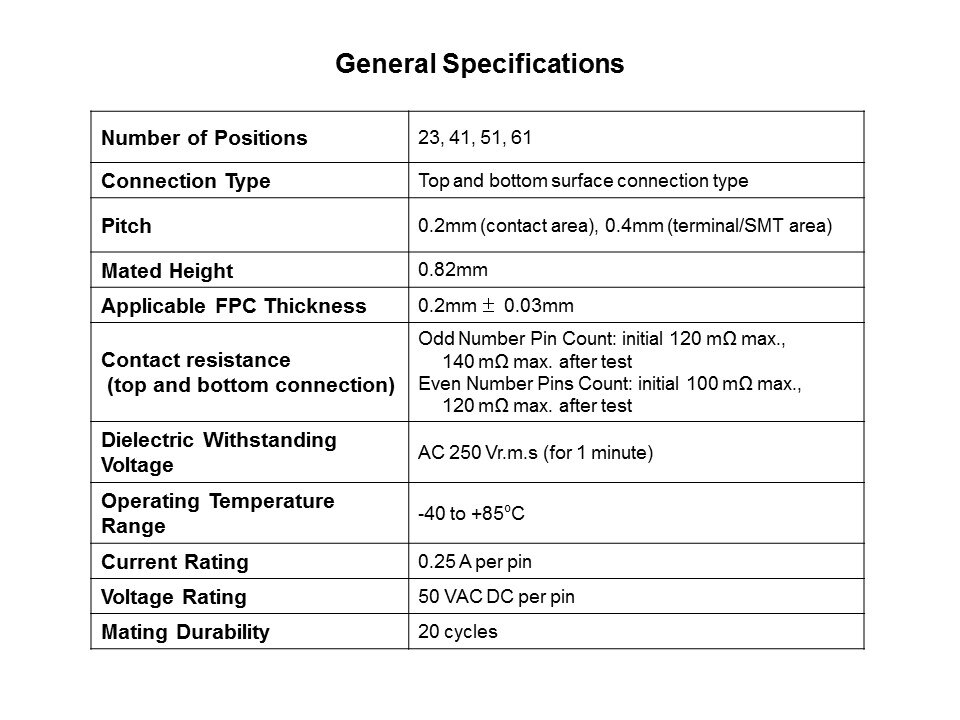

The FR02 series is currently available with 51 or 61 contacts. Other pin counts will be available in the future. The applicable FPC thickness is 0.2mm, and the current rating is 0.25A per pin.

PTM Published on: 2014-06-10
