LTC7851-Slide6

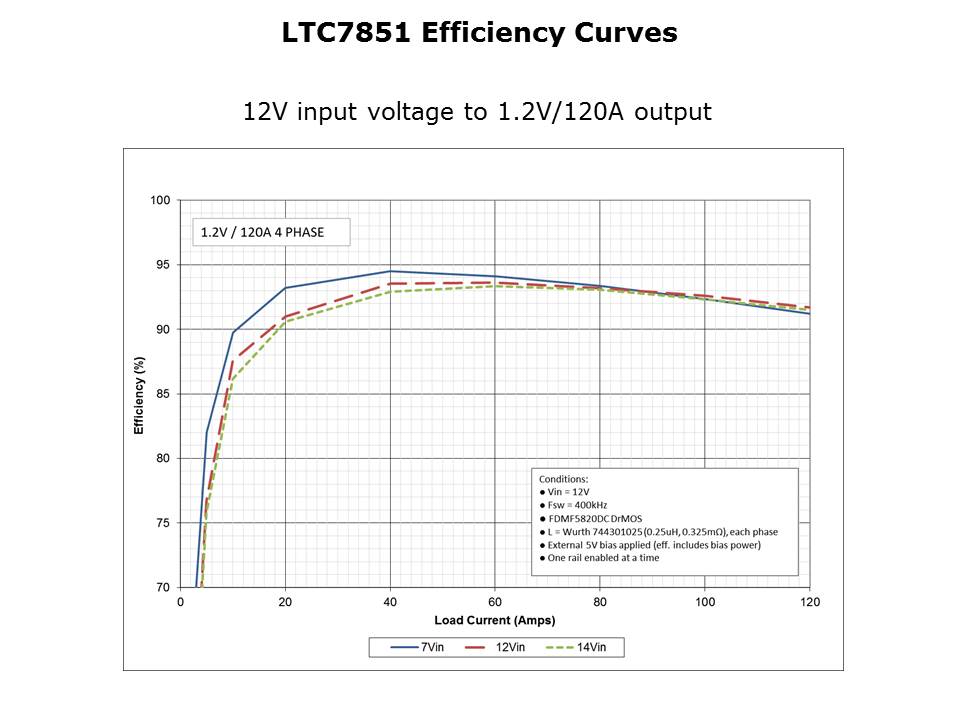

The graph on this slide shows the efficiency of the schematic on the previous slide. The vertical axis is the efficiency and the horizontal axis is the load current. An efficiency of up to 94.5% can be achieved when stepping down a 12V input to 1.2V at up to 120A.
